50 Litre Plastic Jerry Can Making Machine 220V / 380V / 415V / 440V Voltage SRB90

Zhangjiagang Baisu Machinery Manufacture Co., Ltd.

50 Litre Plastic Jerry Can Making Machine 220V / 380V / 415V / 440V Voltage SRB90

Brand Name : BAISU

Model Number : SRB90

Certification : CE

Place of Origin : China, Jiangsu Province

MOQ : 1 Set

Payment Terms : T/T, L/C, Western Union

Delivery Time : 60 Days

Packaging Details : Covered with water-proof film, fastened with special container loop and hooks.

Price : USD 55000-60000/ Set

Supply Ability : 100 Sets/ Year

Machine Type : Extrusion Blow Molding

Product Range : Plastic Jerrycan, Drum

Max Volume : 60L

Material : LDPE, HDPE, PP

Capacity : 40-45BPH

Voltage Range : 220V/380V/415V/440V

Machine Size : 5.3x2.5x3.8M

Machine Weight : 13.2T

Power : 36.5KW

Guarantee : 1 Year

Contact Now

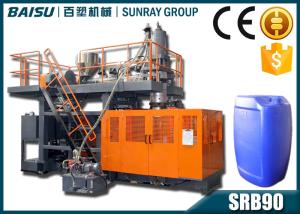

50 litre plastic jerry can making machine SRB90

MACHINE MAIN FEATURES

● 50 litre plastic jerry can making machine SRB90, is accumulating blow moulding machine.

● Max product volume is 60L, used for plastic jerry can, drum, open top barrel and container.
● Its output for 50 litre plastic jerry can is 33 Pcs/hour, daily production capacity is 792 Pcs.
● High-hardness alloy coating screw driven by SIEMENS motor for plasticizing capacity 140KG.
● Diagonal tie bar central clamping structure, driven by worm motor for easy changing mould.
● Accumulating head with good material runner design and refined metal surface process.
● Updated hydraulic system with servo motor system for energy saving to lower your cost.
● Adopt high speed total machine control system with 100 point parison thickness control.
● Bottom blowing system, parison expanding or sealing device, motor driving robot included.

TECHNICAL DATA

Machine Model EBM SRB90
Max Product Volume 60 L
Target Material HDPE/PP
Machine Size 5.3x2.5x3.8 m
Machine Weight 13.2 Tons
Voltage Suitable Customer Specified
Screw Diameter 90 mm
L/D Ratio 24:1
Barrel Heating Power 21.4 KW
Extrusion Motor Power 37 KW
Plasticizing Capacity 140 KG
Clamping Unit Structure Diagonal 2 Tie Bars Central Clamping
Platen Size 900x950 mm
Opening Stroke 450~1050 mm
Clamping Force 360 KN
Max Mould Size 700x1250 mm
Accumu-head Volume 5.0 L
Max Ejection Weight 3.75 KG
Max Die Diameter 350 mm
Head Heating Power 21.3 KW
Total Power 106 KW
Average Energy Consumption 36.5 KW
Compressed Air Needed 0.8Mpa / 1.2m3
Cooling Water Needed 5.5 m3/H
Loading Reference 40’HQ

50 Litre Plastic Jerry Can Making Machine 220V / 380V / 415V / 440V Voltage SRB90

50 Litre Plastic Jerry Can Making Machine 220V / 380V / 415V / 440V Voltage SRB90

50 litre plastic jerry can making machine SRB90 is widely used in big plastic jerry can manufacturing field, wide neck plastic drum producing field, pressed ring open top barrel making field, also used for other chemical liquid packing containers and tanks. In normal production, the cycle time is about 110 seconds. Its production capacity is 33 pcs/hour, daily output is 792 Pcs. The key technical points lie in precise die and core size, blow pin head diameter and design, also the suitable depth of mould cutting overflow grooves to insure the scraps can be removed easily. Besides EBM machine, we also provide on-line auto deflashing plastic bottle moulds, and auxiliary machines such as auto-loader, color mixer, scraps crusher, water chiller, air compressor, air accumulating tank, leakage tester, in-mold labeling machine and so on. We help customers to get one stop service of manufacturing, exporting and technical supports.


Extrusion System

The extrusion system includes gear box, extrusioin motor, inverter, screw, barrel, head and die. The extruder adopts gradient mixing type with high-speed energy saving design. Material of screw: High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥800,brittleness≤2. Material of barrel: High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥900,brittleness≤2. The head runner has good design and head matel is processed for higher hardness. The die and core will be made according to your product design and size.

Clamping Unit
Clamping unit is composed of front & back platens, clamping seat, carriage seat, mould stroking & clamping hydraulic cylinders, synchronizing mechanism, with the structure of nether crank design. Platen movements open & close, carriage up & down is assisted with linear guide rails & ball bearing sliders to increase action smoothness and position precision. The end positions & slow speed positions are controlled by proximity switches or transducers. Our nether bent arm central clamping structure insures the clamping force bearing to mould in balance, easy for scraps auto-deflashing, also good for mould's lifespan.

Electric Control
The electrical control system is composed of operation panel, temperature control module, PLC, input & output module, proportion board, contactors, voltage stabilized source, air swtiches, mid relays, proximity switches, inverter and motors. The operation panel contains power switch, touch screen, alarm, hot cutter knob, auto cycle button, emergency stop button, action reversion button, extruding speed button.


Hydraulic System
The hydraulic system is mainly composed of motor, pump, pressure regulating valve block, reversing valve blocks, cylinders and oil chillers. It controls platens open & close, carriage up & down, extrusion system up & down, blow pin actions, or even spinning cut and so on. Our hydraulic system has been updated with proportion valve and mechanical shuttle valve for action stability and precision. It insures the oil pressure output fast but smooth, action performance is quick but with less impact.


Water & Air Supply
The pneumatic system contains air cylinder, air valves, air filters, air tubes, fast plugs and so on, for controlling the actions of head inner blowing, blow pin blowing, auto-deflashing, or pushing in & out for some special moulds. The necessary air pressure is 0.4~0.6 Mpa, air consumption is 0.6~0.8 M3/min. The water system contains water distributing blocks, ball valves, tubes, connectors and so on, for chilling the screw & barrel, hard gear box, blowing units and moulds. The necessary water pressure is 0.2~0.4 Mpa, water consumption is 2500L/hour.

Automatic Production
our machine supports auto-deflashing control system and pneumatic hardware, the scraps can be on-line removed automatically through auto-deflashing mould. Scraps fall down and slide outside of machine through a slide channel. The finished products are pushed out from another side together with platen carriage down action with the guidance of bottle collective shelves. The conveyer system can be equipped to take scraps into crusher, and convey the finished products to leakage tester or packing table. During the producing period, the machine can work automatically without the worker's help.

Working Flow Arrangement
The whole producing line totally need 2 workers. Worker No.1 takes charge of material mixing and feeding, he collects the crushed scraps into color mixer, operate the material mixing of new material, crushed material and color master batch. After mixing he carries material into material source tank, the auto-loader will feed material automatically. The other worker takes charge of bottle packing, and take the packaged bottles into storage area.

50 Litre Plastic Jerry Can Making Machine 220V / 380V / 415V / 440V Voltage SRB90

PURCHASE & SERVICE FLOW
1. Get customers' sample or product information to select the suitable blow molding machine model.
2. Communicate and negotiate to customers' detailed requirements and provide solution plan.
3. Confirm payment terms, price discount and make proforma invoice or contract, arrange down payment.
4. Start order production and report to customers the manufacturing progress in every week.
5. Machine is finished for mould test, bring forward commissioning report and arrange tail in works.
6. Invite customers for checking and acceptance,operation training, arrange loading and delivery.
7. Dispatch engineer for installation and commissioning, arrange machines' layout in customer' s site.
8. One year guarantee, after sales services, share our experience and remote technical support.
9. Feedback in time for customer's problem, provide solutions and customer's new project consulation.
