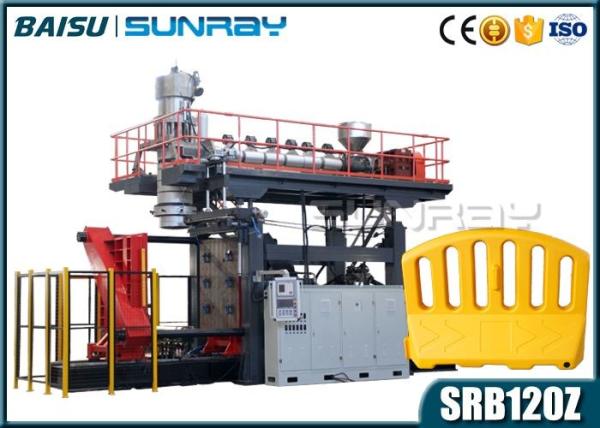

Plastic Road Barrier Extrusion Blow Molding Machine 1400 X 1750mm
Platen Size SRB120Z, 500L traffic barrier extruder blowing machine
1. Reasonable structure design and solid frame manufacturing to
insure running stability.
2. Machine total control system with convenient operation page
design suitable for remote technical support.
3. Energy saving, mature hydraulic and electric design, low problem
rate to reduce your production cost.
TECHNICAL DATA LIST
|Machine Model||Fully automatic blow molding machine|
|Max Product Volume||500 L|
|Machine Weight||36 Tons|
|Machine Size||8.7*4.6*6.8 m|
|Screw Diameter||100 mm x 2 Pcs|
|Plasticizing Capacity||450 KG|
|Clamping Force||1800 KN|
|Platen Size||1400*1750 mm|
|Platen Opening Stroke||800-1800 mm|
|Max Mould Size||1250*2150 mm|
|Accumulating Volume||40 L|
|Max Ejection Weight||30 Kg|
|Max Product Weight||18 Kg|
|Max Die Diameter||1000 mm|
|Total Power||242 KW|
|Average Energy Consumption||122 KW|
1. SRB120Z is fully automatic accumulating blow molding machine for
200~500L HDPE plastic traffic barriers, wall barriers, road blocks
and road fence specially. The output for 16KG traffic barrier is 16
Pcs/hour, the daily capacity is 385 Pcs.
2. HDPE recycled material special screw with high hardness
bimetallic alloy of L/D ratio 28:1, extrusion system is driven by 6
grade motor for plastcizing capacity 450KG, 40L vertical type FIFO
accumulating head. Clamping unit can be pushed outward with oil cylinder, easy for
3. High speed total machine control system with 100 point parison
thickness controller, aluminum cantilever operation box. PHASE
servo motor & SUMITOMO gear pump for energy saving and control
oil temp. Height adjustable bottom blowing unit & parison
sealing unit, motor-dring water chilled robot arm.
1. Machine Foundation Size: 10 x 4.0 m
2. Production Area: 16 x10 m
3. Minimum Workshop Height: 7.5 m
4. Air Supply Requirement: 2.3m3/min, 0.8Mpa
5. Water Supply Requirement: 40 Tons
6. Machine Power Consumption: 125 KW
7. Production Line Power Consumption: 180 KW
8. Whole Line Electricity Arrangement: 1000 Amps
9. Minimum Workers Number: 3~4 Workers
1. Our accumulating extrusion blow molding machines covers 30~1000L
drums, tanks, containers, pallets and toys.
2. High hardness bimetallic screw has 12 years lifespan for new
material & 8 years for recycled material.
3. Servo motor system and gear pump are used in optimized hydraulic
system, saving your energy consumption.
4. Integrated machine control, , saving 20 moulds’ formula, 100
point parison thickness control.
5. For large products, we use 1+2 hydraulic cylinder structure to
insure clamping effect also moving speed.
6. For abnormal shaped products, we can provide individulized blow
molding machine for your wanted technics.
7. Rich experience in whole producing line layout and working flow
arrangement, highten your production effeciency.
