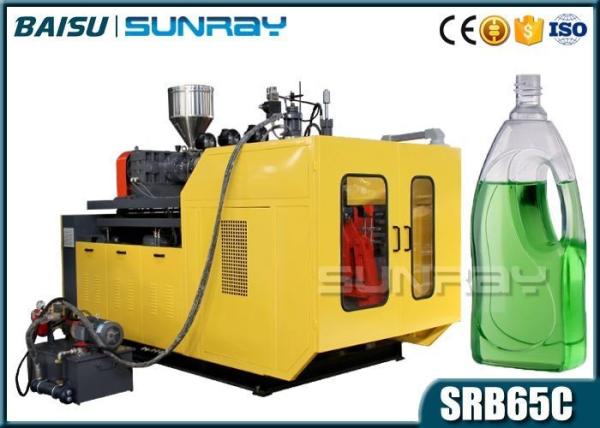

1L 2L 3L PVC Bottle Blow Molding Machine SRB65-1C Automatic
Moulding Machine , PVC Detergent Bottle Making Machine
1. SRB65-1C is single station single head fully automatic blow moulding machine for PVC bottles specially.
2. Machine total control system with convenient operation page
design suitable for remote technical support.
3.The head and extrusion system is designed and processed for PVC
4. Its output for 1L PVC bottle is 200 Pcs/hour, for 2L PVC bottle
is 160 Pcs/hour, for 3L PVC bottle is 140 Pcs/hour.
|Machine Model||PVC Bottle Blow Molding Machine|
|Max Product Volume||3 L|
|Machine Weight||4.5 Tons|
|Machine Size||3.8 x 1.8 x 2.5 m|
|Screw Diameter||65 mm|
|Plasticizing Capacity||75 KG|
|Clamping Force||68 KN|
|Platen Size||320 x 390 mm|
|Platen Opening Stroke||150~500 mm|
|Max Mould Size||360 x 360 mm|
|Four Head Central Distance||160 mm|
|Max Product Diameter or Width||135 mm|
|Material Cutting Method||Hot Cutting|
|Max Die Diameter||95 mm|
|Total Power||45 KW|
|Average Energy Consumption||27.5 KW|
MACHINE MAIN FEATURES
● Plastic bottle blow molding machine SRB65-1C, is single station
single head PVC EBM.
● Max product volume for PVC bottle is 3L, used for pvc bottles,
jars and containers.
● Its output for 2 liter PVC bottle is 160 Pcs/hour, daily
production capacity is 3840 bottles.
● PVC special screw with higher hardness driven by enlarged
extrusion motor and gear box.
● Nether bent arm central clamping unit with linear guide rails for
platen moving in stability.

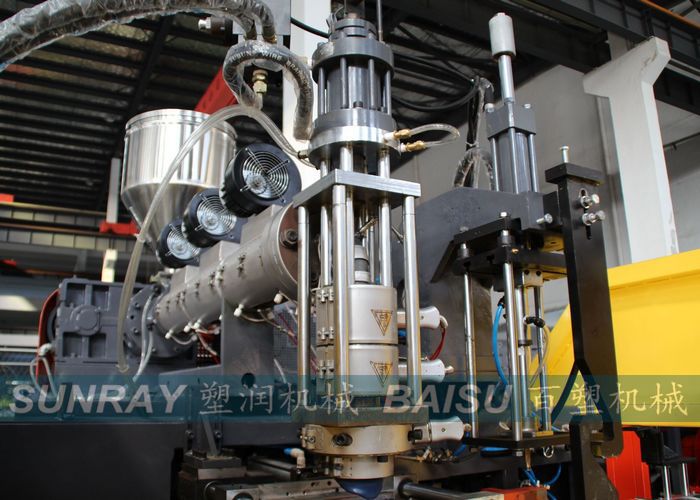

● Single cavity PVC head with good runner design, made with
stainless steel metal parts.
● Updated hydraulic system with proportional hydraulic valve for
stable and precise actions.
● Use 2 pneumatic cylinders for head lifting, clean and easy for
maintenance and repair.
● Lubrication pump, scraps slide channels, product clamping boards
1. Machine Foundation Size: 3.5 x 2 m
2. Production Area: 6 x 5 m
3. Minimum Workshop Height: 3.0 m
4. Air Supply Requirement: 0.8m3/min, 0.6Mpa
5. Water Supply Requirement: 5 Tons
6. Machine Power Consumption: 27.5 KW
7. Production Line Power Consumption: 36.5 KW
8. Whole Line Electricity Arrangement: 100 Amps
9. Minimum Workers Number: 1~2 Workers
